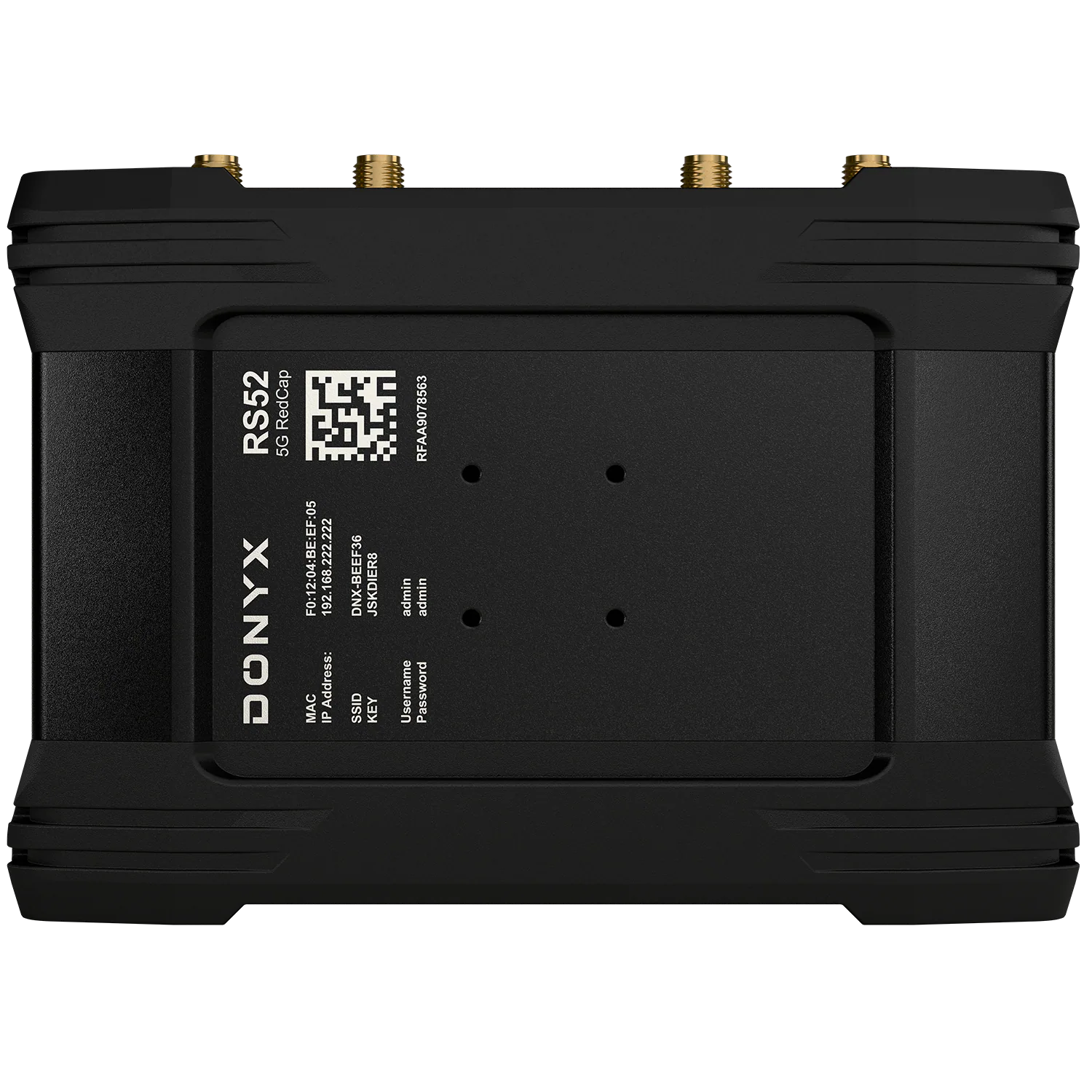

RS525G RedCap

RS52 is an industrial router with one 5G RedCap cellular module, 2 Fast Ethernet ports for resilient remote connectivity.

Support for single NR5 (redcap) module
5G, download speed up to 220 Mbps
Wi-Fi
2 x LAN 100 Mbps, support for PoE in and PoE out

Project pricing and lead timeGet a tailored quote for RS52

Europe and UK sales
Technical support before and after deployment

Product overview

Reliable connectivity for demanding deployments.

This compact industrial router is designed for reliable data transmission over cellular networks using 5G RedCap and LTE technologies.

Equipped with an NR5 RedCap module, the router provides data transfer speeds of up to 220 Mbps (downlink) and 120 Mbps (uplink). RedCap benefits from the improved spectrum efficiency and reduced latency of 5G, making it suitable for demanding applications requiring high performance in real-world scenarios.

The device features industrial-grade interfaces, including GPI/GPO, PoE IN, and PoE OUT, to support a wide range of connectivity requirements in industrial environments. Additionally, it includes an integrated Wi-Fi access point supporting IEEE 802.11b/g/n standards, enabling wireless network deployment.

The hardware platform is built on a high-performance processor, ensuring reliable operation and efficient handling of networking tasks.

The router runs dnxOS, supporting modern encryption, tunnelling protocols like OpenVPN and IPsec to ensure secure data transmission. It provides advanced features such as custom VPN configurations, diagnostics tools, and flexible scripting capabilities, tailored for industrial and enterprise use.

Technical data

Specifications

Specifications are based on the current product documentation and may vary by configuration.

Hardware Specifications+

Cellular Modules: 1 x NR5 (RedCap)
Processor: MIPS 24KEc 580 MHz
Dynamic RAM: 128 MB
NAND Flash Memory Capacity: 32 MB
Wi-Fi: 2.4 GHz 802.11b/g/n

Ports and Connectors+

Ethernet Connector: 2 x 10/100 Mbps
SIM Card Slots: 2 x Mini SIM
Microfit4 Connector: Power, GPI, GPO

Physical Specifications+

Product Dimensions (including connectors): 130 × 95 × 35 mm
Product Weight: 240 g
Enclosure Material: Aluminum
Enclosure Protection Rating: IP30
Operating Temperature Range: from -40°C to +65°C

Electrical Specifications+

Power supply voltage: 9-54 V DC
Current consumption
Details: power supply voltage +12 V - 800 mA
Details: power supply voltage +24 V - 400 mA

Tunneling+

OpenVPN: Ability to run one server and multiple clients simultaneously.
Encryption: Client - AES-128-CBC, AES-192-CBC, AES-256-CBC; Server - AES-128-CBC, AES-128-GCM, AES-192-CBC, AES-192-GCM, AES-256-CBC, AES-256-GCM
IPsec: IKEv1, IKEv2.
Encryption: Client - AES-128, AES-192, AES-256; Server - AES-128, AES-192, AES-256
GRE: GRE TUN (Layer 3)
EoIP: MikroTik RouterOS protocol based on GRE RFC 1701
PPTP, L2TP: Server and Client mode support for L2TPv2, L2TPv3
Wireguard: WireGuard tunnels and peers
DMVPN: Client mode operation, additional IP Security encryption

Network Functions+

Routing: Static
Network protocols: PPP, PPPoE, DHCP, TCP, UDP, ARP, IPv4, ICMP, HTTP, HTTPS, TLS, SSL
Connection Monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link tracking
Firewall: Port forwarding, ZONE-based rules, pre-configured firewall rules, custom rules, NAT
DHCP: Static and dynamic IP address allocation
Network Backup: VRRP; Wired, Mobile or WiFi WAN. Supports automatic failover to an alternative connection (Automatic Failover)
Network Services: DHCP Server, NTP, DNS, SSH, SNMP

Security Features+

Authentication: Pre-shared key, digital certificates, X.509 certificates
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port and tag based VLAN separation
Access control: WiFi access control (MAC address filter)

Monitoring & Management+

UI: WEB UI access via HTTP/HTTPS, CLI access via SSH, status, setup and configuration, firmware update, system log
SSH: SSH (v1, v2)
SNMP: SNMP (v2c, v3)
Zabbix: Zabbix Agent (requires manual package installation)

Wi-Fi+

Wireless mode: Access Point (AP), Station (STA), Station Bridge (STA WDS mode allows interface to be bridged)
Wi-Fi security
Details: WPA/WPA2-Enterprise-PEAP, WPA/WPA2-PSK, AES-CCMP, TKIP, Auto Cipher modes
Details: SAE
Wi-Fi users: Up to 100 simultaneous connections
SSID: SSID stealth mode, access control list MAC address
