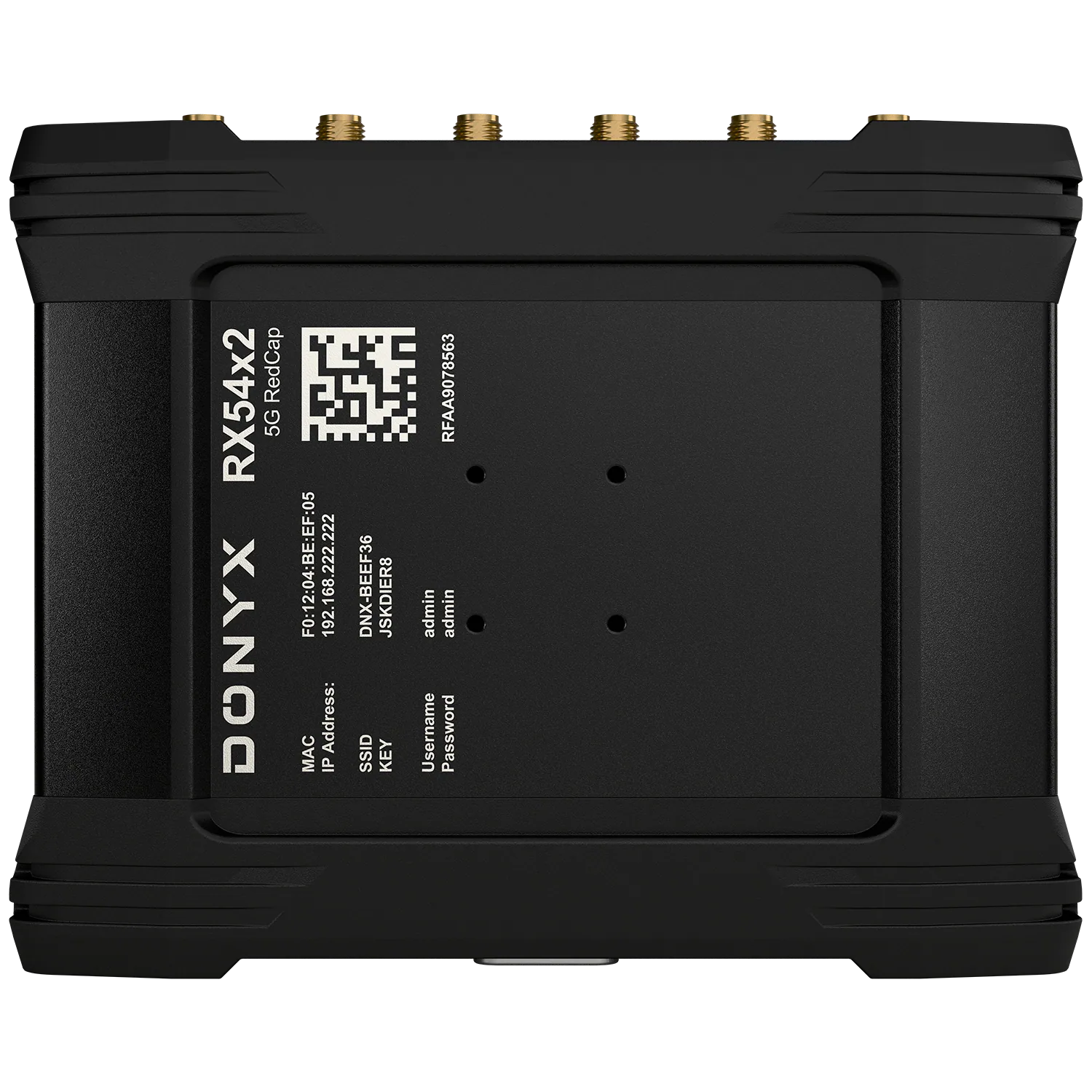

RX54x25G RedCap

RX54x2 is an industrial router with 2 5G RedCap cellular modules, 4 Fast Ethernet ports, RS232 and RS485 for resilient remote connectivity.

Support for two NR5 (redcap) modules
5G, download speed up to 220 Mbps
Wi-Fi
4 x LAN 100 Mbps, 7 x GPIO

Project pricing and lead timeGet a tailored quote for RX54x2

Europe and UK sales
Technical support before and after deployment

Product overview

Reliable connectivity for demanding deployments.

This industrial-grade 5G router supports 5G NR (New Radio), delivering download speeds of up to 220 Mbps and upload speeds of up to 120 Mbps per module. With dual modules, the router ensures resilient connectivity through automatic failover and load balancing, supporting service continuity and reducing downtime. Dual-SIM functionality ensures connection redundancy and allows for scheduled operation.

The router offers a comprehensive range of wired and wireless connectivity options. These include an integrated 802.11b/g/n Wi-Fi access point, four 10/100 Ethernet ports, RS-232 and RS-485 serial interfaces, and seven configurable GPIO pins offering maximum flexibility for integration with external devices.

The hardware platform is built on a high-performance processor, ensuring reliable operation and efficient handling of networking tasks.

The router runs dnxOS, supporting modern encryption, tunnelling protocols like OpenVPN and IPsec to ensure secure data transmission. It provides advanced features such as custom VPN configurations, diagnostics tools, and flexible scripting capabilities, tailored for industrial and enterprise use.

Data transmission is secured with robust encryption protocols, ensuring the safety and integrity of transmitted information.

Technical data

Specifications

Specifications are based on the current product documentation and may vary by configuration.

Hardware Specifications+

Cellular Modules: 2 x NR5 (RedCap)
Processor: MIPS 24KEc 580 Mhz
Dynamic RAM: 128 MB
NAND Flash Memory Capacity: 32 MB
Wi-Fi: 2,4 GHz (802.11b/g/n 2T2R MAC)

Ports and Connectors+

Ethernet Connector: 4 x 10/100 Mbps
SIM Card Slots: Mini SIM
Microfit4 Connector: Power
Terminal Block: RS485, 7 x GPIO, power
DB9 connector: RS232
SD Card slot: MicroSDHC

Physical Specifications+

Product Dimensions (including connectors): 135 × 120 × 40 mm
Product Weight: 300 g
Enclosure Material: Aluminum
Enclosure Protection Rating: IP30
Operating Temperature Range: from -40°C to +65°C

Electrical Specifications+

Power supply voltage: from 8 to 30 V (DC)
Current consumption
Details: power supply voltage +12 V - 2000 mA;
Details: power supply voltage +24 V - 1000 mA;
GPIO Outputs
Details: The maximum total load current across all GPO ports must not exceed 300 mA
Details: Maximum output current for GPIO1 - GPIO7 - 100 mA per pin
Details: When using GPIO in output mode with a +12V supply voltage, the device's power consumption increases by 300 mA
GPIO Inputs
Details: Voltage range for "0" (low level) - 0...0.3 V
Details: Voltage range for "1" (high level) - 1.9 V...Vin
Details: Maximum allowable input voltage - 30 V

Tunneling+

OpenVPN: Ability to run one server and multiple clients simultaneously.
Encryption: Client - AES-128-CBC, AES-192-CBC, AES-256-CBC; Server - AES-128-CBC, AES-128-GCM, AES-192-CBC, AES-192-GCM, AES-256-CBC, AES-256-GCM
IPsec: IKEv1, IKEv2.
Encryption: Client - AES-128, AES-192, AES-256; Server - AES-128, AES-192, AES-256
GRE: GRE TUN (Layer 3)
EoIP: MikroTik RouterOS protocol based on GRE RFC 1701
PPTP, L2TP: Server and Client mode support for L2TPv2, L2TPv3
Wireguard: WireGuard tunnels and peers
DMVPN: Client mode operation, additional IP Security encryption

Network Functions+

Routing: Static
Network protocols: PPP, PPPoE, DHCP, TCP, UDP, ARP, IPv4, ICMP, HTTP, HTTPS, TLS, SSL
Connection Monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link tracking
Firewall: Port forwarding, ZONE-based rules, pre-configured firewall rules, custom rules, NAT
DHCP: Static and dynamic IP address allocation
Network Backup: VRRP; Wired, Mobile or WiFi WAN. Supports automatic failover to an alternative connection (Automatic Failover)
Network Services: DHCP Server, NTP, DNS, SSH, SNMP

Security Features+

Authentication: Pre-shared key, digital certificates, X.509 certificates
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port and tag based VLAN separation
Access control: WiFi access control (MAC address filter)

Monitoring & Management+

UI: WEB UI access via HTTP/HTTPS, CLI access via SSH, status, setup and configuration, firmware update, system log
SSH: SSH (v1, v2)
SNMP: SNMP (v2c, v3)
Zabbix: Zabbix Agent (requires manual package installation)

Wi-Fi+

Wireless mode: Access Point (AP), Station (STA), Station Bridge (STA WDS mode allows interface to be bridged)
Wi-Fi security: WPA/WPA2-Enterprise-PEAP, WPA/WPA2-PSK, AES-CCMP, TKIP, Auto Cipher modes
Wi-Fi users: Up to 100 simultaneous connections
SSID: SSID stealth mode, access control list MAC address
